20+ years dedication CATV/SATV/Fiber Optics
9 Years
| Ask Lasest Price | |
| Brand Name : | RITEL |
| Certification : | CE, UL, ISO9001 |
| Model Number : | CATV/MATV 4-way splitter economy version for latin america |
| Price : | $0.80~$2.00/PC |
| Delivery Time : | Depends on quantity |
| Payment Terms : | T/T, Paypal, Western Union |
| Supply Ability : | 20000pcs per months |
> Slim zinc alloy house
> Golden plated
> DC block on each port
| Item | Freq. Range | Parameter (dB) | ||
| (MHz) | S-2E | S-3E | S-4E | |
| Insertion Loss | 5-65 | 3.6 | 5.8 | 7.2 |
| 65-550 | 3.7 | 5.8 | 7.5 | |
| 550-750 | 3.8 | 6.2 | 7.6 | |
| 750-900 | 4.0 | 6.8 | 8.0 | |
| Isolation | 5-65 | 25 | ||
| 65-550 | 26 | |||
| 550-750 | 25 | |||
| 750-900 | 22 | |||
| Return Loss | 5-65 | 16 | ||
| 65-550 | 16 | |||
| 550-750 | 16 | |||
| 750-900 | 16 | |||
| RFI | 5-900 | 110 | ||
| Connector | F male to female, 3/8-32UNEF | |||
| Dimensions | mm | 50*41*11 | 70*41*11 | |
| Weight | g | 24 | 42 | 46 |
Application:
>CATV subscriber
Order Information:

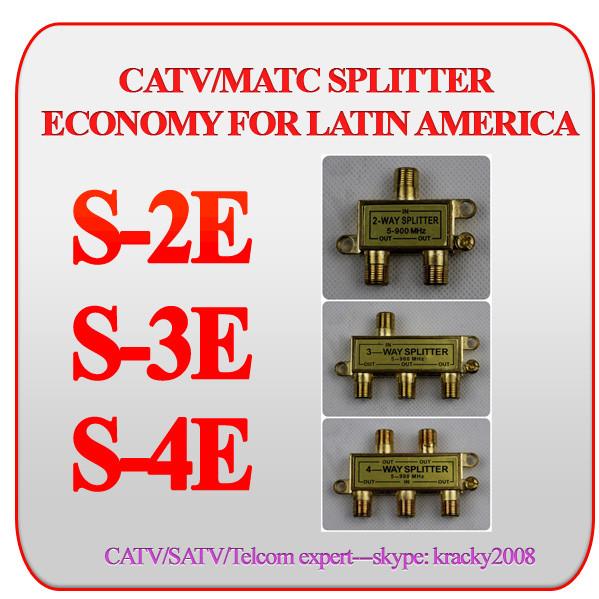

S-2E: 2-way splitter, 5-900MHz, DC block each port.
S-3E: 3-way splitter, 5-900MHz, DC block each port.
S-4E: 4-way splitter, 5-900MHz, DC block each port.
|
|
