| Brand Name : | RITEL or OEM |

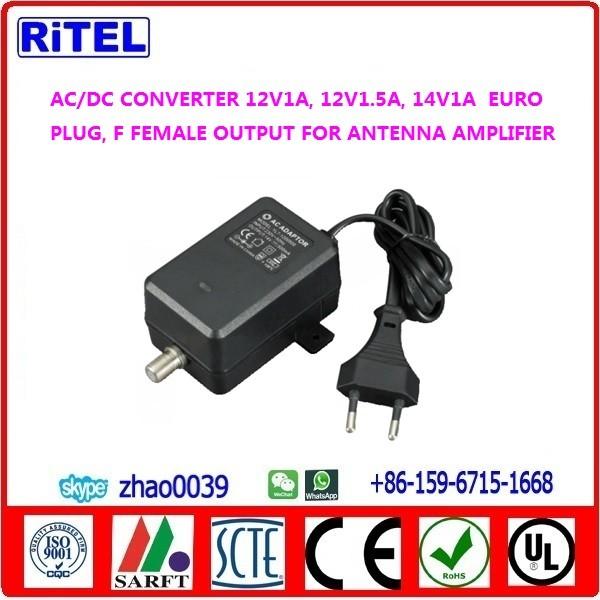

| Model Number : | ac/dc converter 12V1A power adaptor RPA-121000T with 6kv surge protection for catv matv smatv drop amplifier, ftth optic node, cable modem |
| Certification : | CE, RoHS |
| Price : | $1~3 |
| Payment Terms : | Western Union, T/T, MoneyGram |
| Supply Ability : | 100k/months |
| Delivery Time : | depends on quantity |
● Short circuit/overload Protecting/LVDO
● Fully enclosed plastic case
● Universal AC input /Full range
● VI efficient
Model | RPA-122000T | |
Output | DC output voltage | 12V |
| Output voltage tolerance | ±5% | |
| Rated output current | 2A | |
| Output current | 0~2A | |
| Output power | 24W | |
| Ripple and noise | 100mVp-p | |
| Line regulation | ±1% | |
| Load regulation | ±5% | |
| Setup rise hold up time | 500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load | |
Input | Input voltage range | 90～264VAC 135～370VDC |
| AC input current | 0.5A/100VAC | |
| Efficiency | 80% | |
| AC inrush current | 45A/230VAC | |
| Leakage current | ＜0.25mA/240VAC | |
| Frequency range | 47～63Hz | |
Protection characteristic | Over load protection | 110%~150%rated output power |
| Protection mode : Hiccup mode ,auto-recovery after fault condition is removed. | ||
| Over-voltage protection | 105~135% rated output power | |
| Protection mode :Clamp by zener diode,output short | ||
| Environment | Working temperature | 0℃~+50℃ |
| Working humidity | 20%~90% RH non-considering | |
| Storage Temp,humidity | -20℃~+85℃ | |
| Temp.coefficient | ±0.03% /℃(0~50℃) | |
| Vibration | 10~500Hz, 2G 10min./1 cycle ,period for 60 min. each along X Y Z axes | |
| Safety | Withstand voltage | I/P-O/P:3000 VDC |
| Safety standards | EN60950 | |
| Insulation resistance | I/P-O/P:100M Ohms/500VDC/25℃/70%RH | |
| EMC emission | Compliance to EN55024, EN61000-3-3 | |
| EMC immunity | Compliance to EN61000-3-3 | |
| Others | Weight/Packing | 0.18kg/45PCS/9.6kg |
| Dimension | 86*44*68MM | |
| Connector | Plug & Cable | 5.5*2.1mm, 1.2m |
AC Plug: EURO, US, UK, Australia or others
DC Plug: F type male, female
Output: 12V/1A, 1.5A, 2A, 15V/1A, 18V/1A
Efficient: V, VI grade
OEM/ODM/EMS is welcome!
|
|
