| Brand Name : | RITEL |
| Certification : | CE |

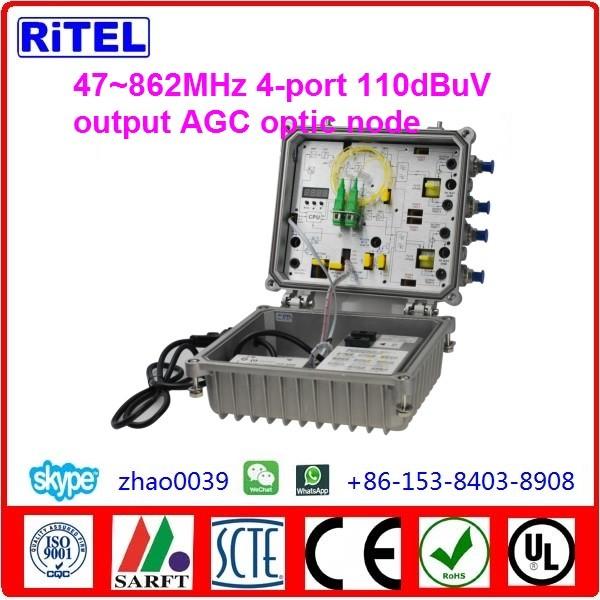

| Model Number : | CATV 1G Bi-directional AGC Outdoor Optic Receiver 4-port ON-4 |
| Price : | $80.00~$100.00 |
| Delivery Time : | 5~7 days |
| Payment Terms : | T/T, Paypal, Western Union |
| Supply Ability : | 50~100pcs per months |
■ 5-1000MHz, 65/87, 40/54
■ AGC, output splitter/tap optional
■ Max Output level 110dBuV
■ Zinc-alloy Water-proof house
| Item | Unit | Specification |
| Forward Optical Receive Parameter | ||
| Optical Parameter | ||
| Input Power Range | dBm | -5~+2 |
| Suggested Work Range | dBm | -3~+1 |
| Optical Return Loss | dB | ＞45 |
| Optical Wavelength | nm | 1100~1600 |
| Operating Fiber Type | single mode | |
| System Parameter | ||
| C/N | dB | ＞51 |
| C/CTB | dB | ＞69 |
| C/CSO | dB | ＞62 |
| RF Parameter | ||
| Frequency Range | MHz | 45/87~862 |
| Flatness | dB | ±0.75 |
| Rated Output Level | dBuV | 94(Input Optical Power -2dBm) |
| Max. Output Level | dBuV | 108 |
| Return Loss | dB | ≥16(47-550MHz);≥14(550-862MHz) |
| Output Impedance | Ω | 75 |
| Return Optical Transmit Parameter | ||
| Optical Parameter | ||
| Optical Wavelength | nm | 1310±10 |
| Laser Type | FP or DFB | |
| Output Optical Power | dBm | 1~5 |
| RF Parameter | ||
| Frequency Range | MHz | 5~30/65 |
| Flatness | dB | ±1.5 |
| Input Power Level | dBuV | 90~98 |
| Input Return Loss | dB | ≥16 |
| Output Impedance | Ω | 75 |
| Noise Power Ratio Dynamic Range | dB | ≥10(NPR≥30dB) |
Frequency split: 65/87, 40/54
Power: local or remote
Connector: SC/APC, FC/APC
OEM/ODM/EMS is welcome!
|
|
