| Brand Name : | RITEL |
| Certification : | CE, UL, ISO9001 |
| Model Number : | CATV/MATV 4-way splitter with 360 degree round PIN |
| Price : | $0.80~$2.00/PC |
| Delivery Time : | Depends on quantity |
| Payment Terms : | T/T, Paypal, Western Union |
| Supply Ability : | 20000pcs per months |
> 360 degree round PIN
> Beryllium copper with golden plated
> Circular cylinder structure
> More than 400g extraction force
> Zinc Alloy cover, inter-lock structure for high shielding
| Item | Frequency Range | Parameter (dB) | ||
| (MHz) | S-2RP | S-3RP | S-4RP | |
| Insertion Loss | 5-65MHz | 3.6 | 5.8 | 7.2 |
| 65-550MHz | 3.7 | 5.8 | 7.5 | |
| 550-750MHz | 3.8 | 6.2 | 7.6 | |
| 750-1000MHz | 4.0 | 6.8 | 8.0 | |
| Isolation | 5-65MHz | 25 | ||
| 65-550MHz | 28 | |||
| 550-750MHz | 28 | |||
| 750-1000MHz | 25 | |||
| Return Loss | 5-65MHz | 16 | ||
| 65-550MHz | 16 | |||
| 550-750MHz | 16 | |||
| 750-1000MHz | 16 | |||
| RFI | 5-1000MHz | 110 | ||
| Connector | F male to female. 3/8-UNEF | |||
| Dimensions | mm | 61*49*16 | 87*49*16 | |
| Weight | g | 26 | 42 | 46 |
>CATV subscriber
Order Information:

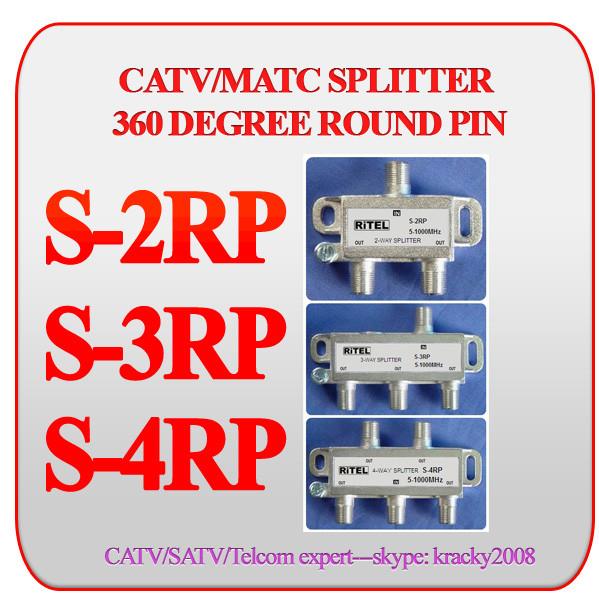

S-2RP: 2-way splitter, 5-1000MHz, DC block each port.
S-3RP: 3-way splitter, 5-1000MHz, DC block each port.
S-4RP: 4-way splitter, 5-1000MHz, DC block each port.
|
|
