| Brand Name : | RITEL or OEM |

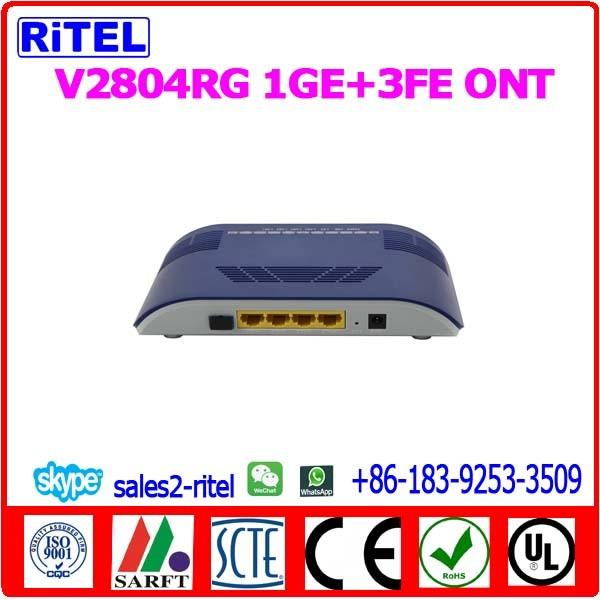

| Model Number : | V2804RG 1GE+3FE GPON ONU |
| Certification : | CE, UL, ISO9001 |
| Price : | $10.00~$100.00/PC |
| Payment Terms : | T/T, Paypal, Western Union |
| Supply Ability : | 20000pcs per months |
| Delivery Time : | Depends on quantity |
V2804RG terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Gigabit GPON technology, which have high ratio of performance to price, Layer 2/3. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as ITUT984.x and technical requirement of GPON Equipment from China Telecom.
> Plug and play, features auto-detecting, auto-configuration,
and auto firmware upgrade, etc.
> Integrated OMCI remote configuration and maintenance function.
> Support rich QinQ VLAN functions and IGMP Snooping multicast
features.
> Fully compatibility with OLT based on Broadcom/PMC/Cortina
chipset.
> Support NAT, Firewall function.
> Support IPv4 and IPv6 dual stack.
> The WAN port supports bridge, router and bridge/router mixed
mode.
| Technical items | Description |
| V2804RG | |
| Main chip | Realtek |
| PON interface | 1 GPON interface, SC single-mode/single-fiber, Upstream 1.25Gbps,Downstream 2.5Gbps |
| PON Port Type | BOSA |
| Wavelength | GPON Tx 1310nm, GPON Rx 1490nm |
| Sensitivity | <-27dBm(PX20+) |
| Overload | >-8dBm(PX20+) |
| Optical interface | SC/PC connector |
| LAN interface | 1*10/100/1000Mbps+3*10/100Mbps auto adaptive Ethernet interfaces, RJ45 |
| Indicators | 9 indicators, for status of power supply, PON, LAN . |
| DC power supply | +12V, external AC-DC power adaptor |
| Power consumption | ≤9W |
| Operating condition | Operating temp: -5~+55C Operating humidity:10~90%(non-condensed) |
| Storage condition | Storage temp: -30~+60C Storage humidity:10~90%(non-condensed) |
| Dimension | 185mm*33mm*122mm(W*H*D) |
| Net weight | 0.25Kg |
Data Service Functions
> Full speed non-blocking switching.
> 2K MAC address table.
> 64 full range VLAN ID.
> Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
> Integrated port monitoring, port mirroring, port rate
limiting, port SLA, etc.
> Support auto polarity detection of Ethernet ports (AUTO MDIX).
> Integrated IEEE802.1p QoS with four level priority queues.
> Support IPv4 IGMP snooping and IPv6 MLD snooping.
> Support bridge, router and bridge/router mixed mode.
|
|
