| Brand Name : | RITEL or OEM |

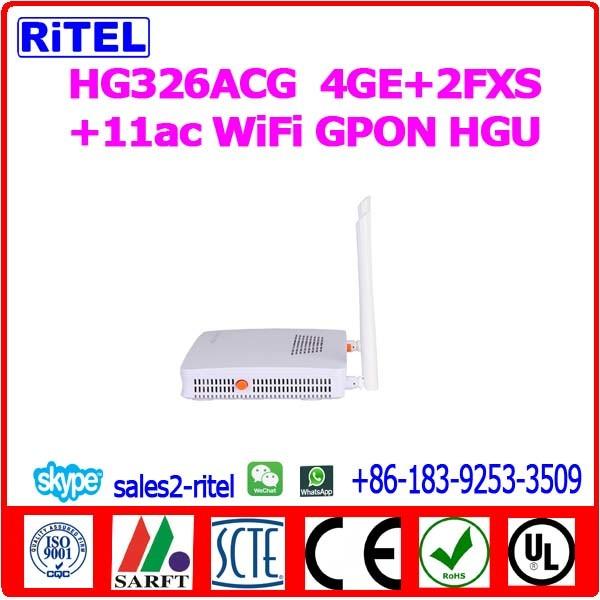

| Model Number : | HG326ACG 4GE+2FXS+11ac WiFi GPON ONU |
| Certification : | CE, UL, ISO9001 |
| Price : | $10.00~$100.00/PC |
| Payment Terms : | T/T, Paypal, Western Union |
| Supply Ability : | 20000pcs per months |
| Delivery Time : | Depends on quantity |
HG326ACG terminal devices are designed for fulfilling FTTH and
triple play service demand of fixed network operators or cable
operators. These boxes are based on the mature Gigabit GPON
technology, which have high ratio of performance to price, and the
technology of 802.11AC WiFi (2T2R), Layer 2/3 and high quality VoIP
as well. They are highly reliable and easy to maintain, with
guaranteed QoS for different service. And they are fully compliant
with technical regulations such as ITUT984.x and technical requirement of GPON Equipment from China Telecom.
>Plug and play, features auto-detecting, auto-configuration, and
auto firmware upgrade, etc.
> Integrated OMCI remote configuration and maintenance function.
> Support rich QinQ VLAN functions and IGMP Snooping multicast
features.
> Fully compatibility with OLT based on Broadcom/PMC/Cortina
chipset.
> Support 802.11n WiFi(2T2R) function.
> Support NAT, Firewall function.
> Support IPv4 and IPv6 dual stack.
> Integrated line testing compliant with GR-909 on POTS.
Technical items | Description |
HG326ACG | |
PON interface | 1 GPON interface, SC single-mode/single-fiber, Upstream 1.25Gbps,Downstream 2.5Gbps |
Wavelength | GPON Tx 1310nm, GPON Rx 1490nm |
Optical interface | SC/APC connector |
WLAN | Compliant with IEEE802.11ac, |
LAN interface | 4 10/100/1000Mbps auto adaptive Ethernet interfaces, RJ45 |
Downstream POTS interface | 2 FXS, RJ11 connectors |
Indicators | 14 indicators, for status of power supply, PON, LAN and POTS . |
DC power supply | +12V/1A, external AC-DC power adaptor |
Power consumption | ≤10W |
Operating condition | Operating temp: -5~+55C |
Storage condition | Storage temp: -30~+60C |
Dimension | 205mm*37mm*140mm(W*H*D) |
Net weight | 0.34Kg |
Data Service Functions
> Full speed non-blocking switching.
> 2K MAC address table.
> 64 full range VLAN ID.
> Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
> Integrated port monitoring, port mirroring, port rate
limiting, port SLA, etc.
> Support auto polarity detection of Ethernet ports (AUTO MDIX).
> Integrated IEEE802.1p QoS with four level priority queues.
> Support IPv4 IGMP snooping and IPv6 MLD snooping.
> Support bridge, router and bridge/router mixed mode.
POTS Service Functions
> Call protocol: SIP(IMS compatible) seamless compatible with
all popular call agent.
> Integrate heartbeat function and support active/standby call
agent.
> Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729,
auto-negotiate with call agent.
> Echo cancellation exceeding ITU-T G.165/G.168-2002, up to
128ms tail length.
> Support high/low speed fax, bypass fax, and T38 fax.
> Support high speed MODEM(56Kbps) dial access.
> Support RFC2833 and redundant RFC2833, difference rings, MD5
authentication, call forward, call waiting, hot-line call, alarm
clock, and all kinds of value-added voice service.
> Multi-party conferencing.
> Line testing according to GR-909.
> IP address assignment: dynamic PPPoE/DHCP Client and static
IP.
> Support WEB, CLI,IVR,TR069.
> Call loss less than 0.01%.
WIFI Service Functions
> Integrated 802.11b/g/n/ac
> Support 128 connections.
> Support WEP and WPA/WPA2 security protocols.
|
|
